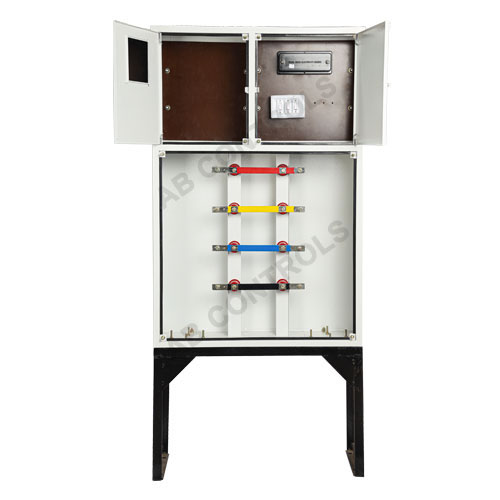

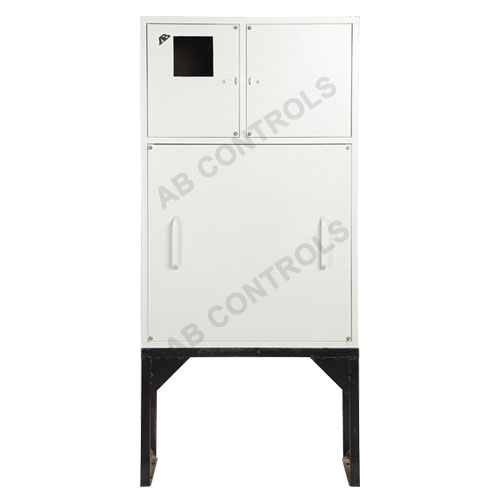

CT Panel

Typically fabricated from Mild Steel (MS) or Sheet Metal, often with CRCA (Cold Rolled Close Annealed) Steel for robustness.

Coated with Epoxy Powder Coating after proper pre-treatment (like 7-Tank process) for enhanced durability, corrosion resistance.

TEST BLOCK, 20A BAKELITE FUSE WITH 2A HRC LINKS – 3 SETs, 6A 1 WAY SWITCHES WITH 3 WAY GANG BOX – 3 No

Busbars - High-conductive Copper or EC Grade Aluminum Busbars are used for efficient distribution of power within the panel.

Neutral & Earth Terminals - Separate Neutral Busbars and Earth Busbars/Terminals are provided for safe grounding and protection against electrical hazards.

• FLOOR MOUNTING ANGLE FRAME – HEIGHT – 21”
• MADE AS PER MRT DRAWING & SPECIFICATION
• CT WILL BE SUPPLIED FROM MRT WITH TEST CERTIFICATE

Sealing Provision - Provision for utility sealing on the incomer, busbar, and meter compartments to prevent unauthorized access and tampering with the meter or wiring.

Viewing Window - Often includes a Toughened Glass or polycarbonate window to allow utility personnel to easily read the energy meter without opening the main enclosure.
